Product information

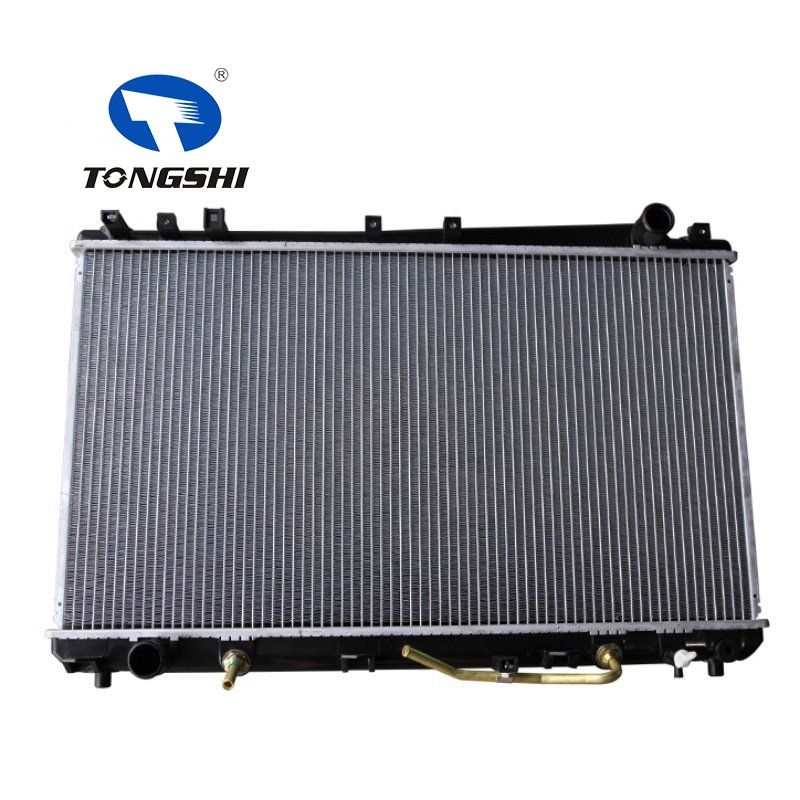

TS NO.: 75140
CORE SIZE:400*708

Product information

TS NO.: 75140


CORE SIZE: 400*708

OEM: 16400-0A170/80


Application Scope: This radiator is suitable for the Toyota Avalon model, covering the years 2000 to 2004.


Heat Dissipation Performance: Radiator is designed to effectively dissipate the heat generated by the engine, ensuring proper engine operation. It is made of high-quality materials and designed to provide reliable heat dissipation performance.


Durability and Quality: Radiator undergoes rigorous quality control to ensure its durability and reliability. It is made of durable materials and utilizes advanced manufacturing processes to meet the demands of high-intensity use.


The Passenger Vehicle Division has advanced production equipment and a strict product quality assurance system. It produces more than forty-two series of more than 8000 models of radiators for cars, mini vehicles, light vehicles and truck. A series of complete production process lines including parts cleaning,core assembly , core brazing, water chamber withholding product inspection,product packaging, ect.


The heat dissipation belt is made of a combined folded edge belt,whch improves the ability of the heat dissipation belt to resist lodging and ensures the stability of the crest distance. The crest distance is stable at 2.9-3.0, which is better than domestic counterparts and improve the heat dissipation efficiency of the product. The material is AA3003.


The division strictly follows the requirement of OEM standards to do a good job of product quality, and strictly controls each production process. After continuous developement, its design level, process level, product quality, business reputation and marketing service quality have been continously improved, and it has strong market competitiveness.


The production process of an automotive radiator typically includes the following main steps:

Design and planning: The manufacturer designs and plans the radiator based on the car model and specifications. This involves determining the radiator's size, materials, cooling efficiency, and other technical requirements.


Material preparation: Prior to production, the materials required for the radiator are prepared. These primarily include aluminum alloy or copper alloy sheets, plastic end tanks, pipes, and solder. These materials will be used to manufacture the core structure and cooling circuits of the radiator.


Core manufacturing: The radiator's core structure typically consists of a series of closely spaced parallel tubes and fins. Firstly, the manufacturer employs stamping techniques to shape and size the metal sheets accordingly. Then, these sheets are stacked together to form the parallel cooling tubes. Subsequently, the tubes and fins are fixed together using welding or aluminum brazing, creating a complete radiator core.


Assembly: Once the core and end tanks are manufactured, they are assembled together. This involves connecting the end tanks to the radiator core and securing them using welding, adhesives, or other connection techniques.


Testing and quality control: After assembly, the radiator undergoes a series of testing and quality control procedures to ensure proper functioning and compliance with standard requirements. These tests may include pressure testing, leakage testing, and cooling performance testing, among others.


Packaging and shipment: Once the radiator passes testing and quality control, it is packaged and prepared for shipment. Packaging typically involves measures to prevent shock and corrosion, ensuring the product's safety during transportation and storage.
